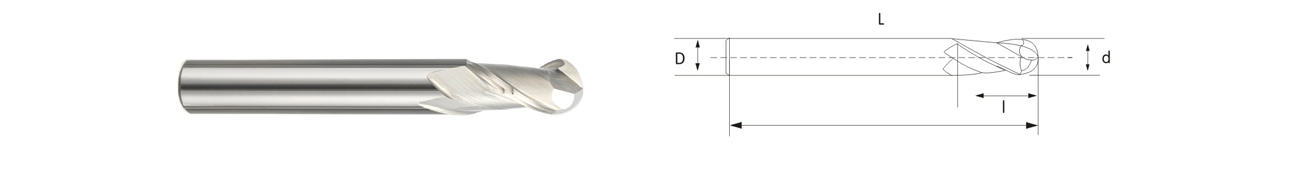

WH450 Ball cutter for aluminum alloy
| Item No. |
Cutter Diameter |
Length of Cut |
Overall Length |
Shank Diameter |
Standard
Type |
R0.5 |
2.00 |
50.00 |
4.00 |
| R0.75 |
3.00 |
50.00 |
4.00 |
| R1.0 |
4.00 |
50.00 |
4.00 |
| R1.25 |
5.00 |
50.00 |
4.00 |
| R1.5 |
6.00 |
50.00 |
3.00 |
| R1.5 |
6.00 |
50.00 |
4.00 |
| R2.0 |
8.00 |
50.00 |
4.00 |
| R0.5 |
2.00 |
50.00 |
6.00 |
| R0.75 |
3.00 |
50.00 |
6.00 |
| R1.0 |
4.00 |
50.00 |
6.00 |
| R1.5 |
6.00 |
50.00 |
6.00 |
| R2.0 |
8.00 |
50.00 |
6.00 |
| R2.5 |
10.00 |
50.00 |
5.00 |
| R2.5 |
10.00 |
50.00 |
6.00 |
| R3.0 |
12.00 |
50.00 |
6.00 |
| R4.0 |
16.00 |
60.00 |
8.00 |
| R5.0 |
20.00 |
75.00 |
10.00 |
| R6.0 |
25.00 |
75.00 |
12.00 |
| R8.0 |
32.00 |
100.00 |
16.00 |
| R10.0 |
40.00 |
100.00 |
20.00 |
Lengthen |
R2.0 |
8.00 |
75.00 |
4.00 |
| R2.0 |
8.00 |
100.00 |
4.00 |
| R3.0 |
12.00 |
75.00 |
6.00 |
| R3.0 |
12.00 |
100.00 |
6.00 |
| R3.0 |
12.00 |
150.00 |
6.00 |
| R4.0 |
16.00 |
75.00 |
8.00 |
| R4.0 |
16.00 |
100.00 |
8.00 |
| R4.0 |
16.00 |
150.00 |
8.00 |
| R5.0 |
20.00 |
100.00 |
10.00 |
| R5.0 |
20.00 |
150.00 |
10.00 |
| R6.0 |
25.00 |
100.00 |
12.00 |
| R6.0 |
25.00 |
150.00 |
12.00 |
| R8.0 |
32.00 |
150.00 |
16.00 |
